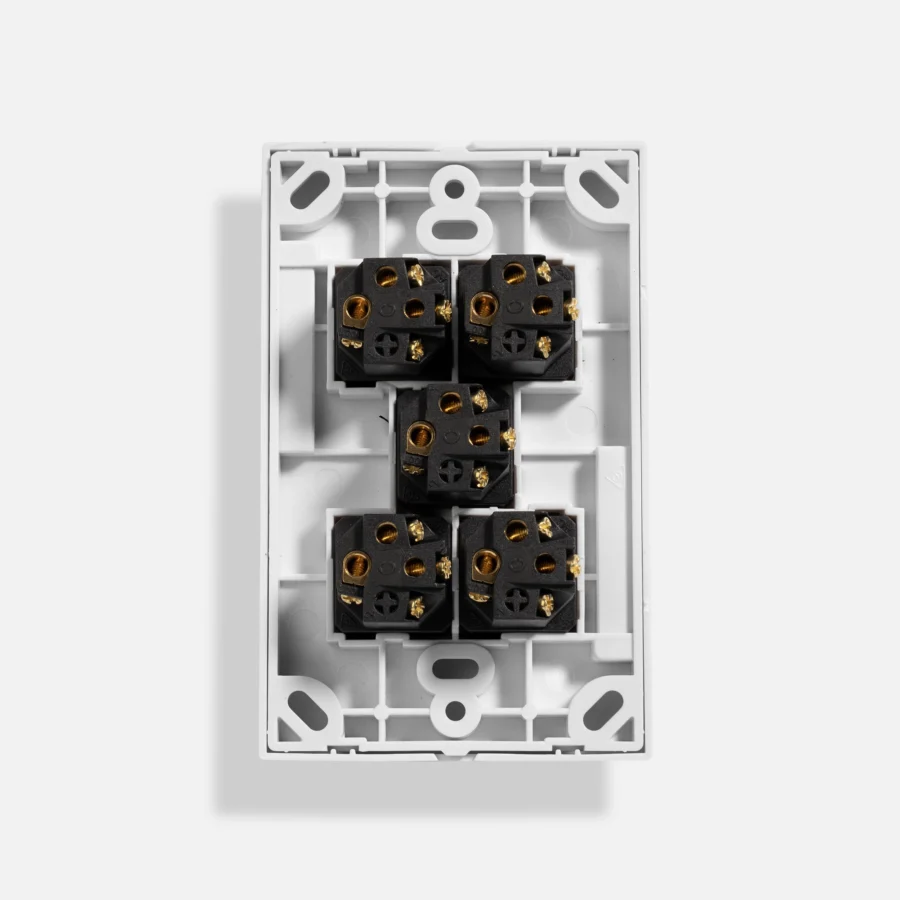

Standard five gang switch vertical
Standard five gang switch vertical
Categories: A Series, Switches and Sockets
SKU: DXWS5/V
Key Features of the Standard five gang switch vertical
Description
A Series Wall Switches are flush-mounted, single-pole, two-way switches designed for general-purpose electrical applications. Available in 1 to 6 gang configurations with polycarbonate or stainless-steel flush plates.
This product is certified to the relevant requirements of AS/NZS 3133:2008 Inc. A1:2009.
Product Class: Wall Switch Trade Mark: DEXTON Rated Voltage: 250V AC Rated Current: 16A
Features
- Flush-mounted design
- Single-pole, two-way switching
- Available in 1, 2, 3, 4, 5 and 6 gang configurations
- Polycarbonate or stainless-steel flush plate options
- Robust enclosure construction
- Insulated construction for electrical safety
- Brass terminals
- Steel screws
- Durable spring mechanism
- Earthing facility for models with exposed metal components
Materials
- Plate: Incombustible polycarbonate
- Metal Plate: Stainless steel
- Terminals: Brass
- Screws: Steel
- Springs: Type 75A / Ø0.55
Markings
Switches are marked in accordance with AS/NZS 3100, including:
- DEXTON registered trade mark
- 250V operating voltage
- 10A current rating
- AC – Alternating Current
- A – Active
- N – Neutral
- E – Earthing terminal
You can download this product’s datasheet and Dexton’s warranty document below
