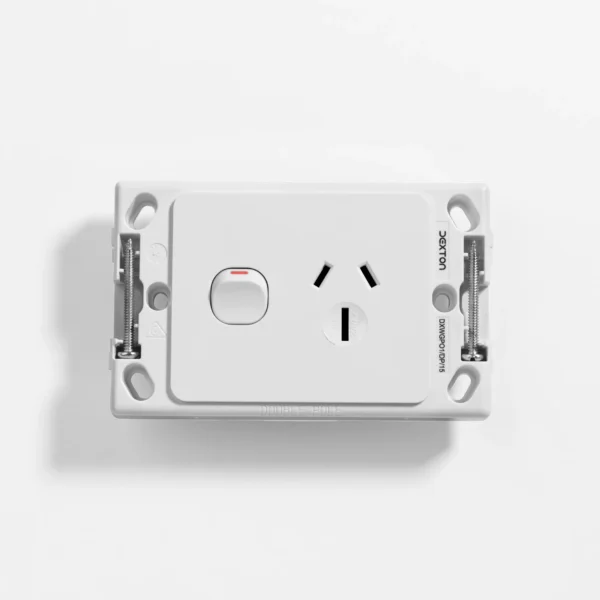

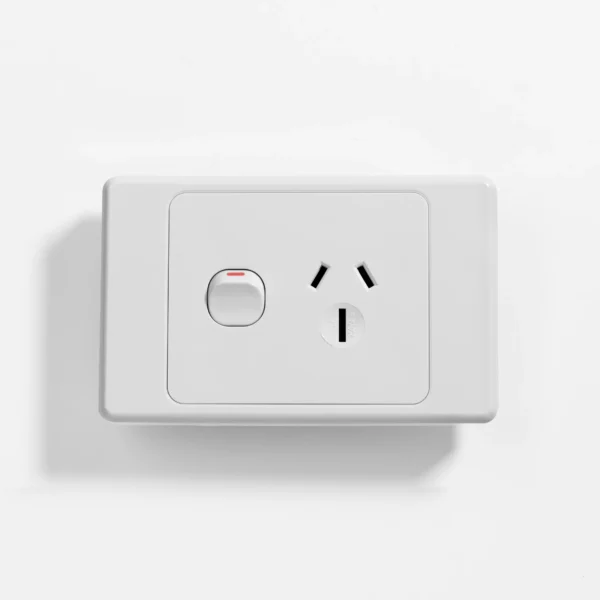

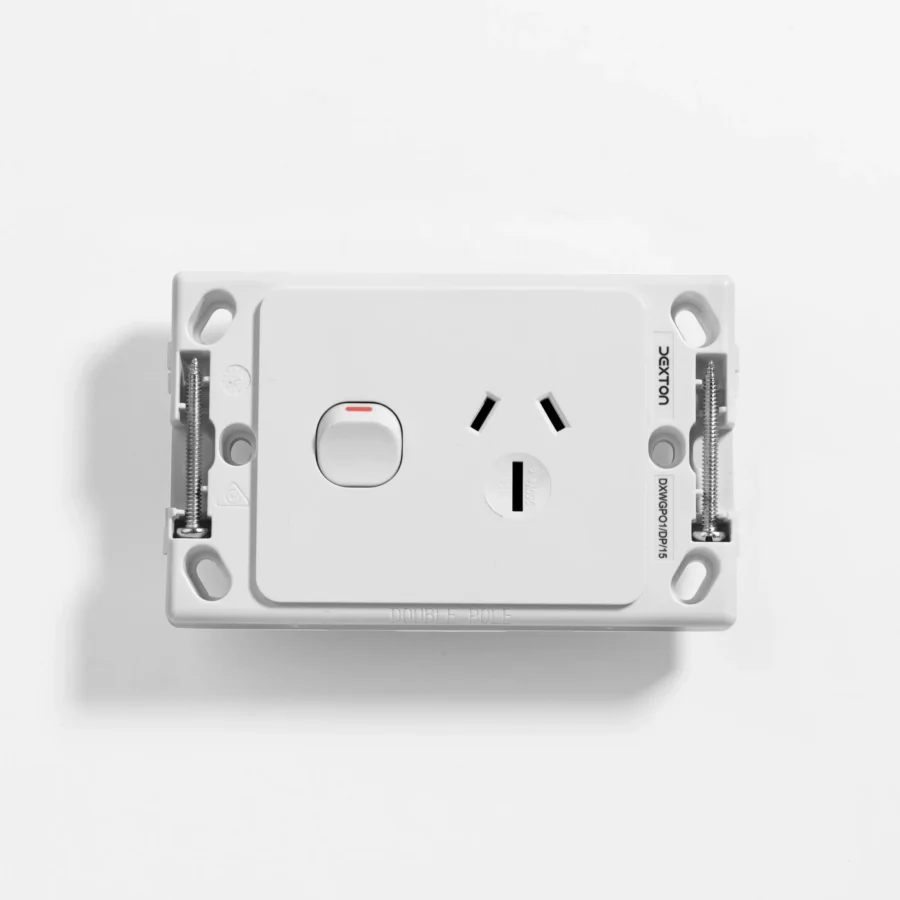

Product Description

This DEXTON Double Pole Switched Socket Outlet is certified to the relevant requirements of AS/NZS 3112:2004 Inc. A1:2006. Designed for internal dry locations, it provides reliable electrical connection and double pole switching for added safety.

Available in 10A and 15A ratings and suitable for one or two gang flush installations, the outlet is manufactured from durable polycarbonate material for long-lasting performance.

Features

• Manufactured from durable polycarbonate material to help maintain colour and resist fading.
• Reinforced structural design for improved durability.
• Adjustable screw alignment ports for easier installation.
• Double pole switching isolates both active and neutral conductors for added safety.
• Flush-mounted design suitable for internal installations.
• Available in 10A and 15A configurations.
• Compatible with standard 10A household plugs and 15A plugs with a wider earth pin.

Electrical Ratings

• Rated Voltage: 250V AC
• Rated Current: 10A / 15A
• Rated Frequency: 50/60Hz
• Dimensions: 117mm × 76mm × 13mm
• Installation Type: Flush mount
• Switching: Double pole

Installation Environment

For dry, internal locations only. This product is not rated for external walls, damp areas, splash zones or weatherproof installations.

Standards & Certification

• Standard: AS/NZS 3112:2004 Inc. A1:2006
• Trade Mark: DEXTON
• Product Class: Double Pole Switched Socket Outlet
